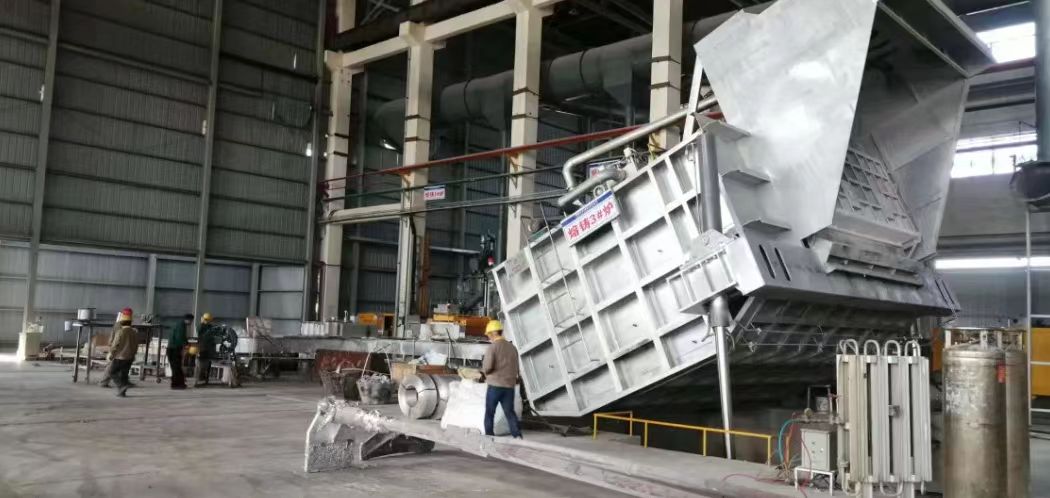

Through the integration of technologies such as a tilting design, precise temperature control, and regenerative combustion, the rectangular tilting aluminum melting furnace achieves a comprehensive enhancement—ranging from tapping efficiency to product quality—establishing itself as a highly efficient and eco-friendly piece of equipment within the aluminum melting and casting industry.

Tilting Discharge: Zero Aluminum Residue

A hydraulic system enables the furnace body to tilt beyond 90 degrees, completely eliminating the issue of residual molten aluminum and significantly boosting metal recovery rates.

Precise Temperature Control: ±3°C Tolerance

Integrated PID and automation systems precisely regulate furnace temperature and molten metal levels, maintaining a temperature deviation of less than ±3°C at the tapping spout. Each burner is independently controlled—featuring automatic ignition, flame detection, and safety shut-off functions—to ensure stable and secure operation.

Smooth Flow Delivery: Eliminating Secondary Contamination

The hydraulic tilting mechanism works in tandem with laser-based level control to provide adjustable lifting and lowering capabilities. This ensures a gravity-free transfer of molten aluminum—preventing turbulence, secondary slag inclusion, and gas absorption—as it flows into the casting mold. By utilizing the high-temperature molten aluminum from the surface layer for casting, the system allows for lower casting temperatures, thereby reducing energy consumption and metal burn-off losses.

Automated Control: Safe and Efficient

The hydraulic and level control systems operate in synergy to facilitate rapid lifting and lowering, as well as automated flow regulation, and are equipped with an emergency stop function. A PLC-controlled proportional valve adjusts the furnace tilting speed, enabling fully automated tapping and casting operations. The bidirectional tilting capability allows the furnace sill to be lowered close to the ground, facilitating convenient slag removal, while enabling the charging vehicle to extend directly to the furnace bottom, thereby extending the service life of the furnace hearth.

Regenerative Combustion: Significant Energy Savings

Equipped with a regenerative combustion system, the furnace maximizes the recovery of waste heat from flue gases, resulting in substantial energy savings. This process lowers exhaust gas temperatures and boosts combustion efficiency, effectively reducing fuel consumption and carbon dioxide emissions to support low-carbon production initiatives.

Eco-Friendly and Low-Emission: Green Production

During operation, the generation of nitrogen oxides (NOx) is drastically reduced. The furnace body features a tight seal, and the exhaust system is designed for efficient and proper venting, ensuring full compliance with stringent environmental regulations.

In summary, the rectangular tilting aluminum melting furnace—with its comprehensive advantages including zero residue, high precision, low energy consumption, and eco-friendliness—not only enhances tapping efficiency and product quality but also empowers enterprises to achieve green and sustainable production.
